Introduction to Longitudinal Shearing Unit

The longitudinal shear unit is used to open and level the rolling plate, and then use a disc shear to cut the steel plate into the required narrow strips. The narrow strips are wound up using a coiling machine, and then packaged into coils.

Our company's longitudinal shear unit has multiple technologies. The automatic centering and uncoiling machine ensures that the steel coil is automatically centered to the center of the unit, and the unit can produce smoothly; The hydraulic distribution device can move the steel bars to the correct position, allowing them to smoothly enter the tensioner and separator, reducing manual intervention and improving the efficiency of the unit; The head and tail bending device can ensure that the head is clamped by the jaws, improving the reliability of the jaws; Hydraulic separate jaws can firmly clamp steel bars, etc.

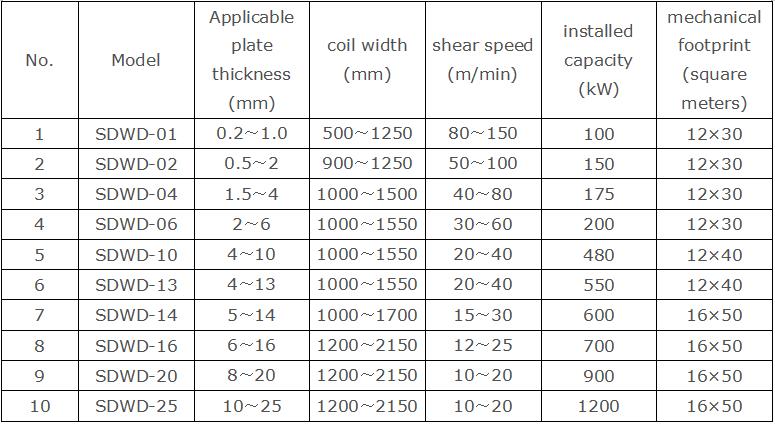

Table for Selection of Longitudinal Shear Unit:
